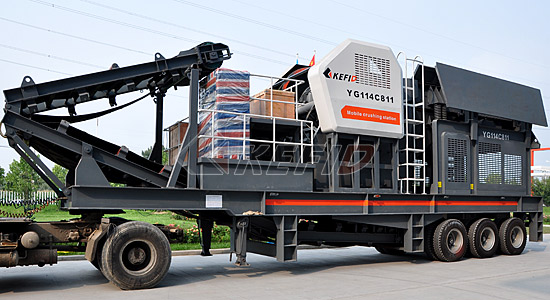

Mobile Jaw Crusher
Features of Mobile Jaw Crusher
1. It’s a crusher with perfect performance, great crushing ratio and is a leader of powerful crusher.
2. Vehicular motor and an integrated controlling box.
3. Work with the integrated machines of jaw crusher, cone crusher, vertical impact crusher, feeders and vibrating screens.
4. With a vehicled installation of the belt under screen, vibrating screen and crusher.
5. Support of vehicled installation and settlement of equipments are prompt and convenient.
6. Steering traction axis will be helpful for high way transportation and getting close to the working site.
Technical Parameter of Mobile Jaw Crusher
Model Technical data | YG830E46 | YG938E57 | YG938E69 | YG114E710 | YG134E912 |
Transportation Length (mm) (If there is an diesel generator) |
8600 | 9800 | 11000 | 13000 | 14000 |
10000 | 11600 | 12000 | 14000 | 15500 | |
Transportation Width (mm) | 2450 | 2450 | 2450 | 2450 | 3000 |
Transporation Height (mm) | 3800 | 3500 | 3600 | 4500 | 4800 |
Maximum Length (mm) | 12000 | 13300 | 13200 | 15000 | 17000 |
Maximum Width (mm) | 2800 | 2900 | 2900 | 2900 | 3100 |
Maximum Height (mm) | 3800 | 4100 | 4600 | 5800 | 5800 |
Weight (T) | 26 | 32 | 41 | 55 | 81 |
Tire Configuration | Uniaxial | Dualaxial | Triaxial | Triaxial | Quadrqxial |
Jaw crusher | PE400×600 | PE500×750 | PE600×900 | PE750×1060 | PE900×1200 |
The maximum Feeding size (mm) | 350 | 425 | 480 | 630 | 750 |
Discharge opening size(mm) | 40-100 | 50-100 | 65-160 | 80-140 | 95-165 |
Capacity (T/h) | 15-60 | 50-100 | 60-130 | 100-250 | 160-380 |
Vibrating Feeder | GZD850×3000 | GZD960×3800 | GZD960×3800 | GZD1100×4200 | GZD1300×4900 |
Belt conveyor | B650×7M | B650×7.5M | B800×8M | B1000×9M | B1200×11M |
Note: Any change of Mobile Jaw Crusher technical data shall not be advised additionally.
