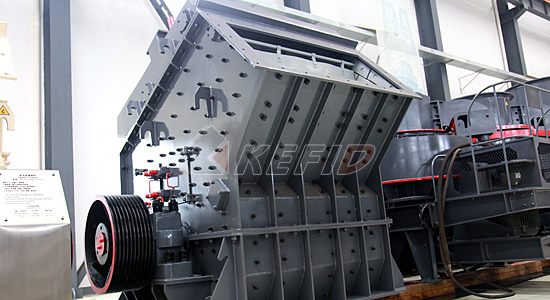

PF series Impact Crusher

PF series Impact Crusher

PF series impact crusher is a latest equipment developed by absorbing advanced technologies at home and abroad and referring to domestic sand and stone making industry. It adopts the lasted manufacture technics, unique structures and design, the producd product is of cubic shape without tension and cracks and good grain shape.

The max feeding size should not be more than 500mm, and compression resistance should not be more than 350Mpa. Various materials(granite, limestone,concrete) of rough, medium fine and super fine quality are available. It is widely used in ore crushing, railway, highway, energy, cement, chemistry, construction materials and others to carry out rough, medium fine and super fine crushing, such as limestone, ripe materials, slag coke,coal and so on. Its outlet size can be adjusted, which makes various specifications posible.

Features of PF series Impact Crusher

1. A large inlet, high crushing chamber which is suitable for materials with high hardness, biger block and less powder;
2. Clearance between impact-plate and plate can be adjust conviniently, which can make effective control of the particle size posible, broken end product is of cubic shape, the grain shape is good;
3. It has compact structure, high machine rigidity, and the rotor has a large inertia;
4. high chrome hammer, impact resistance, abrasion resistance, mechanical wear small, big impact;
5. Using new rotor can increase the impact force;
6. Broken-function is complete, reduction ratio is big, it is of high productivity, low energy consumption, and its overall efficiency is high.

Technical Parameter of PF series Impact Crusher

Mm to inch conversion: 25.4millimeters=1 inch

Model Size of rotor (mm) Feed opening
Max. feed
size (mm)
Capacity (t/h) Power of
Motor (kW)
Weight (t)
PF1010 Φ1000×1050 400×1080 350 50-80 75 12.5
PF1210 Φ1250×1050 400×1080 350 70-130 110 16.5
PF1214 Φ1250×1400 400×1430 350 90-180 132 19
PF1315 Φ1320×1500 860×1520 500 120-250 200 24
PF1320 Φ1320×2000 860×2030 500 160-350 260 27

Note: Any change of Impact Crusher technical data shall not be advised additionally.
