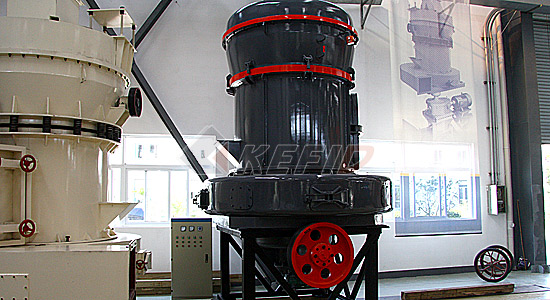

MTW Series Trapezoid Mill

MTW Series Trapezoid Mill

MTW Series Trapezoid Mill is our lastest mill machine with several patents, optimized based on our suspension mill 9518, absorbed european manufacturing technology, meets clients requirements of excellent fineness, reliable performance and favorable price.

The latest mill—MTW series european trapezium mill is the one embracing advanced international techonology, and many proprietary intellectural property rights, the mill adopts many lastes patent technologies, such as wholesome transmission of cone gears, inner thin oil lubrication system, arch wind flow and so on.

Features of of MTW Series Trapezoid Mill

1.The trapezium shaped roller and ring highly improved the crushing efficiency.
2.Easy to be installed and more efficient.
3.The pressure springs work the function of balance and pressurize. Elastic connection can reduce vibration and keep balance when the equipment works.
4.The powder classifier adopts high density impeller which can increase powder precision and capacity.
5.MTW series grinding mill adopts a cambered air channel, the tangential air goes into air channel easily because there is small resistance. And the inner outlet is very good for the grinded material to spread around and avoid grinding material jammed.

Technical Parameter of MTW Series Trapezoid Mill

Mm to inch conversion: 25.4 millimeters = 1 inch
The humidity and hardness of raw material will affect the fineness and capacity.

Model Specification Name MTW110 MTW138 MTW175
Quantity of roller (PCS) 4 4 6
Inner diameter of ring (mm) Ф1100 Ф1380 Ф1750
Rotary speed of main frame(r/min) 120 96 75
Max. Feeding size(mm) < 30 < 35 < 40
Output size (mm) 1.6~0.045 The fineness is 0.038 1.6~0.045 The fineness is 0.038 1.6~0.045 The fineness is 0.038
Capacity (t/h) 3.5~10 6.5~15 11~25
Overall dimension (mm) 8910×6950×9010 9860×8340×10227 13500×11500×9500
Total weight (t) 18 28.5 46

Remarks: Capacity is based on grinding limestone, 80% passing-through. If the technical data and overall dimension is changed, it is subjected to the operation manual which is together with delivered goods.

Note: Any change of MTW Series Trapezoid Mill technical data shall not be advised additionally.
