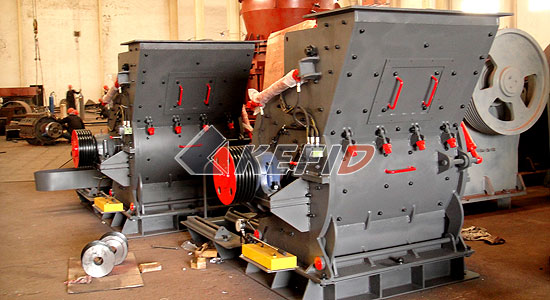

European Hammer Mill

European Hammer Mill

European Hammer Mills are widely used in metallurgy, mining, chemical, cement, coal gangue, construction, sand, refractory material, ceramic and other industry, engaged in breaking and crushing the material in the operation. It is mainly suitable for crushing various soft and hard ore. Whose compression strength is not higher than 320MPa (MPa).

Features of of European Hammer Mill

European Hammer Mill is mainly made up of frame, rotor, hammers, grizzly bar and other components. The frame includes upper part and lower parts, which are welded by steel plates after cutting, the remaining parts bolted into one. High manganese steel liners are studded with inside the frame, to facilitate replacement for a new liners after worn; on the main shaft are installed several groups of the spindle distribution of the hammers, which consists of rotor with the axle of hammers and rotary table. The host drives the main shaft through the motor and V-belt driven spindle to rotate the rotor, generating the centrifugal force, and then driving all hammers stretch around. The bulks of material feed into the crushing chamber will be crushed by the hammers at a high-speed movement. The broken material requested will be passed the grizzly bar at the lower part and discharged, the unbroken rest will be left in the chamber to be crushed repeatedly by the hammers and iron plates until it can reach the requested standard. To avoid clogging, the water content of the material to be crushed should no more than 5%.

1. High production capacity and high crushing ratio.
2. Low power consumption, uniform particle size.
3. Simple, compact and light mechanical structure.
4. Low investment cost, easy management.

Technical Parameter of European Hammer Mill

Mm to inch conversion: 25.4millimeters=1 inch
The humidity and hardness of raw material will affect the fineness and capacity.

Model EHM4008-75 EHM4012-90 EHM4015-132
Diameter of the rotor (mm) 750 900 1150
Length of the rotor(mm) 800 1200 1500
Rotation speed of the rotor (r/min) 800-1000 800-1000 700-1000
Input size(mm) <70 <90 <100
Output size(mm) 0-3 0-3 0-3
Capacity (t/h) 35-50 50-70 70-100
Motor power(Kw) 55-75 75-90 110-132
No. of the hammers(piece) 18 16 32
Dimension(L*W*H/mm) 2310*1665*1610 2840*2100*2020 3720*2650*2540

Note: Any change of European Hammer Mill technical data shall not be advised additionally.
