Trapezium Mill

Trapezium Mill

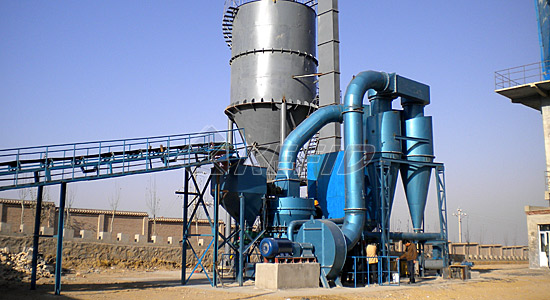

Trapezium Grinding Mill is mainly consists of main frame, speed reducer, powder concentrator, induced draught fan, dust collector, piping device, integrator, and motor, etc. The whole grinding mill line include Jaw Crusher, Bucket Elevator, Mill Deceleration Machine, Vibrating Feeder, Main Frame, Blower, Powder Concentrator, Powder Collecting System, Piping Device, and Bag Deduster.

Got CE and National Patent Certificate, Trapezium Grinding Mill got good reputation with our customers from Australia, US, UK, Spanish and other countries. Trapezium Mill adopts our patented technologies, which are trapezium working surface, flexible connection, roller linked pressure boost, etc. It has reached the advanced international level of powder making equipment manufacturing.

Features of of Trapezium Mill

1.The final product size ranges from the maximum particle diameter of 0.613mm (30mesh) to the finest diameter of 0.033mm (425 mesh). A few materials can reach 0.013mm (1000 mesh).
2.The trapezium roller and grinding ring improve the grinding efficiency greatly. The roller and grinding ring are designed in inverted trapezium with different diameter, which reduce the slip velocity of materials between roller and grinding ring, extend grinding time, and improve the grinding efficiency.
3.TWith high efficient balanced adding pressure springs.Adopting the advantages of Raymond Mill and High Pressure Suspension Mill, Super Pressure Trapezium Grinder has longer service life. The roller assembly has been linked by the pulling pole and the levelled springs, with the radial force yeilding, which avoids the bulk material entering into the grinding chamber to wear down the principal axis and the the bearings, thus the service life will be longer.

Technical Parameter of Trapezium Mill

Mm to inch conversion: 25.4millimeters=1 inch
The humidity and hardness of raw material will affect the fineness and capacity.

Item\Model TGM100 TGM130 TGM160
Roller piece 4 5 6
Roller Diameter×Height(mm) Ф320×200 Ф410×240 Ф440×270
Ring Inner Diameter×Height(mm) Ф980×200 Ф1280×240 Ф1600×270
Speed Of Main frame (r/min) 130 103 82
Max. Input Size (mm) <25 <30 <35
Product Size (mm) 1.6~0.045
fineness can reach to 0.038
fineness can reach to 0.038
fineness can reach to 0.038
Capacity (t/h) 3~8 6~15 9~22
Overall Dimension (mm) 9910×5365×8310 7910×7000×9645 12550×5700×8355
Weight (t) 16 26.1 35

1. Based upon limestone-grinding with 80% pass-through;
2. The final technical data are subject to the operation manual along with the machine.

Table 2:

Name Item Unit Specifications & Technical Data
TGM100 TGM130 TGM160
Motor for main frame Model   Y225M-4 Y280M-4 Y135M1-4
Power kW 45 90 132
Rev. rpm 1480 1480 1480
Motor for separator Model   YCT200-4A YCT200-4B YCT225-4A
Power kW 5.5 7.5 11
Rev rpm 125~1250 125~1250 125~1250
Motor for Elevator Model   Y100L-4 Y100L2-4 Y112M-4
Power kW 3 3 4
Rev rpm 1420 1420 1420
Motor for Blower Model   Y225M-4 Y280M-4 Y135M1-4
Power kW 45 90 132
REV rpm 1480 1480 1480
Motor for Jaw Crusher Model PE 200×350 250×400 250×400 250×750
Y160M-6 Y180L-6 Y180L-6 Y200M-6
Power KW 7.5 15 15 22
REV rpm 970 970 970
Electro-Magnetic Vibrating Feeder Model   GZ2F GZ2F GZ3F
Power W 150 150 200

Note: The final technical data are subject to the operation manual along with the machine.
