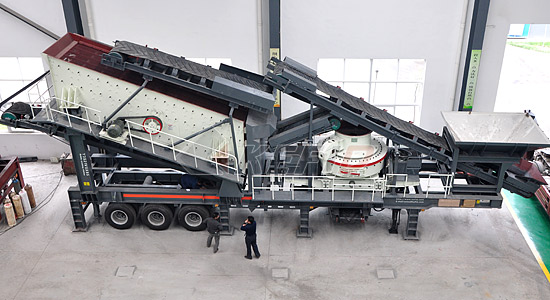

Mobile VSI Crusher
Mobile Vertical Shaft Impact crusher plant (Portable VSI Crusher, portable sand making machine ) is widely used in road and bridge construction, city construction, metallurgy, energy and other departments to implement crushing and screening.
Characters Of Mobile Vertical Shaft Impact Crushing Plant:
High capacity, suitable for fine crushing, shape adjusting easily, high performance, flexible, integral crushing & screening and belt conveyor self-loaded.
Features of Mobile VSI Crusher
1. High output and wide utilization ratio: compared with traditonal machinery under same power, its production capacity increases 30% and structure is stability.
2. Low comsumption of easy-wear parts.
3. Excellent shaped final products.
4. Lubrication system ensures reliable operation.
5. Over-vibration device is equiped to protect the machine when vibration surpasses a stipulated figure.
6. The adjustable feed hopper guarantees the best quantity of material.
7. Environment friendly.
Technical Parameter of Mobile VSI Crusher
Model Technical data | Y3S154VSI71 | Y3S184VSI81 | Y3S186VSI92 | Y3S216VSI14 |
Transportation Length (mm) | 11000 | 11300 | 13500 | 14000 |
Transportation Width (mm) | 2450 | 2800 | 2800 | 3000 |
Transportation Height (mm) | 4000 | 4200 | 4200 | 4400 |
Maximum Length (mm) | 13000 | 13300 | 14500 | 15000 |
Maximum Width (mm) | 2800 | 3150 | 3150 | 3500 |
Maximum Height (mm) | 5700 | 6000 | 6400 | 6700 |
Weight (T) | 32 | 36 | 48 | 61 |
Tire Configuration | Dualaxial | Dualaxial | Dualaxial | Triaxial |
B series VSI crusher | B-7611 | B-8518 | B-9526 | B-1140 |
The maximum Feeding size (mm) | 34 | 38 | 43 | 59 |
Capacity (T/h) | 60-180 | 100-260 | 150-380 | 225-520 |
Belt conveyor under vibraitng screen | B650X7M | B800X7M | B800X8M | B1000X8M |
Self-loaded belt conveyor | B800X3M | B800X3M | B1000X3M | B1200X3M |
Vbrating screen | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |
Note:
1. The above model is elementary mobile crushing plant;
2. We can produce the Mobile VSI Crusher according to customers' requirement.
