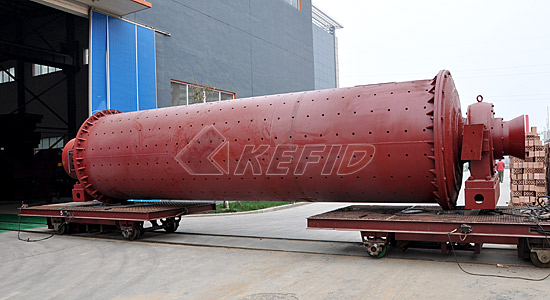

Ball Mill

Ball Mill

Ball Mills are primarily used for fine grinding. Ball Mill is key equipment which repulverises the material after it is crushed. Ball Mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Our company has been amongst the pioneers for many years in the design and application of milling systems for the size reduction of a wide variety of materials including minerals, ores, and coal. There are two kinds of ball mill, grate type and overfall types due to different ways of discharging material.

Features of of Ball Mill

1.The hollow axis adopts the cast steel, and the lining can be replaced. The big rotary gear is forged from cast rolling gears.
2.The machine is made up of feeding part, discharging part, gyre part, transmission part (reducer, small transmission gear, motor, and electrical controller) and so on.
3.Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
4.To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
5.The ball mill is used to grind many kinds of mine and other materials, or to select the mine.
6.Ball mill is widely used in building material, and chemical industry.

Technical Parameter of Ball Mill

Mm to inch conversion: 25.4millimeters=1 inch
The humidity and hardness of raw material will affect the fineness and capacity.

Model Speed of bucket (r/min) Weight of ball (t) Size of feed opening (mm) size of outputting feed (mm) Production (t/h) Power (kW) Weight (t)
Ф900×1800 38 1.5 ≤20 0.075-0.89 0.65-2 18.5 3.6
Ф900×3000 38 2.7 ≤20 0.075-0.89 1.1-3.5 22 4.6
Ф1200×2400 32 3.8 ≤25 0.075-0.6 1.5-4.8 45 12.5
Ф1200×3000 32 5 ≤25 0.075-0.4 1.6-5 45 12.8
Ф1200×4500 32 7 ≤25 0.075-0.4 1.6-5.8 55 13.8
Ф1500×3000 27 8 ≤25 0.075-0.4 2-5 90 17
Ф1500×4500 27 14 ≤25 0.075-0.4 3-6 110 21
Ф1500×5700 27 15 ≤25 0.075-0.4 3.5-6 132 24.7
Ф1830×3000 24 11 ≤25 0.075-0.4 4-10 180 28
Ф1830×6400 24 23 ≤25 0.075-0.4 6.5-15 210 34
Ф1830×7000 24 25 ≤25 0.075-0.4 7.5-17 245 36
Ф2200×5500 21 30 ≤25 0.075-0.4 10-22 370 48.5
Ф2200×6500 21 30 ≤25 0.075-0.4 14-26 280 52.8
Ф2200×7500 21 33 ≤25 0.075-0.4 16-29 380 56
Φ2200×9500 21 38 ≤25 0.074-0.4 18-35 475 62

Note: Any change of Ball Mill technical data shall not be advised additionally.
