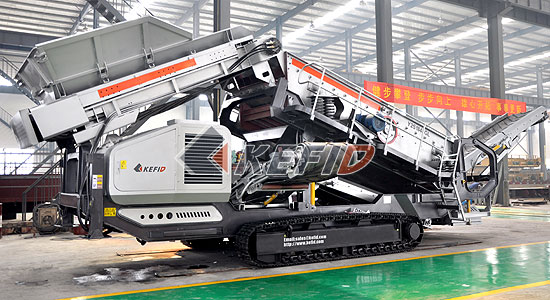

Crawler Mobile Vibrating Screen
Crawler Vibrating Screen Crushing Plant (also called tracked screen ,mobile crushing machine or crawer type vibrating screen) is perfect for the quarry and recycle applications where mobility and production are needed.
A steep angle for the primary screen-box ensures that the majority of the material is processed in the initial impact area. The majority of the undersize is removed during initial impact. Only near-size material passes to the secondary screen-box. This may be set flat enough to ensure any remaining material is screened efficiently.
Clean grade of material, at very high output, are produced as material is exposed to large screening area. The tracked vibrating Screen offers durability and the high frequency screen box for unsurpassed screening efficiency.
Features of of Crawler Mobile Vibrating Screen
1.Large hopper, with variable speed belt feeder, heavy-duty roller bed and heavy- duty belting.
2. Unique Extec design Spreader plate to spread material across screen box.
3.Optional Vibrating grid over feed hopper.
4. Heavy duty tipping grid activated by remote control.
5.Efficiency. screening high and capability processing strong parameters, technical advanced structure, original an has screen vibrating circular.
6.The tracked vibrating screen adopts a cylinder-type eccentric shaft vibration exciter and partial block conditioning amplitude, which makes it easy to maintain.
Technical Parameter of Crawler Mobile Vibrating Screen
| Vibrating Screen | 2ZS1848 | 3YZS1860 | 3YZS2160 |
| Closed hopper volume (M3) | 5 | 6 | 8 |
| Closed hopper Height (mm) | 4300 | 5000 | 5000 |
| Feeding Belt | B800X7.2 | B1000X8.5 | B1000X8.5 |
| Screen Under Belt | B800X7 | B1000X8 | B1000X8 |
| Screen Under Belt Discharge Height (mm) | 3500 | 3500 | 3500 |
| Side Blet | B500X5 | B650X5 | B650X5 |
| Side Blet Discharge Height (mm) | 3500 | 3500 | 3500 |
| Front Belt | B650X7 | B800X8 | B800X8 |
| Front Belt Discharge Height (mm) | 2800 | 3000 | 3000 |
| Power (KW) | 120 | 150 | 180 |
| Transportation Length (mm) | 12000 | 13500 | 1400 |
| Transportation Width (mm) | 3050 | 3200 | 3400 |
| Transporation Height (mm) | 3500 | 4100 | 4100 |
| Transporation Weight (T) | 30 | 36 | 42 |
Note:
1. The above model is elementary mobile crushing plant;
2. We can produce the crushing & screening plant according to customers' requirement.
