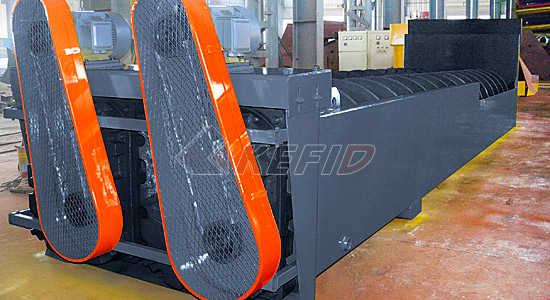

Screw Sand Washing Machine

Screw Sand Washing Machine

Kefid screw sand washing machine is mainly used for sand processing, electric pole factory, building work site and concrete dam, various sands classifying and dewatering.


This sand washer adopts inclination of 15º, under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool, this machine have three functions of washing, dewatering, classifying.

Technical Parameter of Screw Sand Washing Machine

Models LSX-920 2LSX-920 LSX-1120 2LSX-1120
Diameter of screw (mm) 920 920 1120 1120
Length of tub (mm) 7585 7585 9750 9750
Feed Size (mm) ≤10 ≤10 ≤10 ≤10
Capacity (t/h) 100 200 175 350
Speed of screw (r/min) 21 21 17 17
Electric Motor Power(kW) 11 2x11 18.5 2x18.5
Water Consumption (t/h) 10-80 20-160 20-150 40-300
Dimension (mm)(L×B×H) 8420×2180×3960 8420×3970×3960 10770×3950×4860 10770×5260×4860
Weight (t) 6.2 11.5 10.9 17.8

Note: Any change of Screw Sand Washing Machine technical data shall not be advised additionally.
