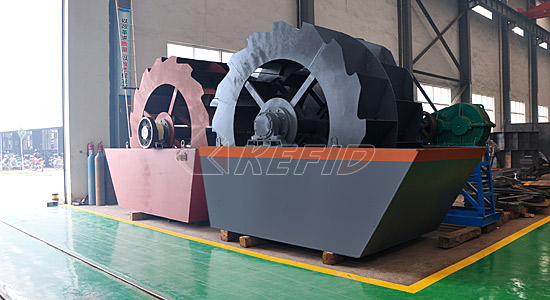

Wheel Sand Washing Machine

Wheel Sand Washing Machine

Wheel Sand washing machine produced by Kefid (including natural sand) is a bucket-washing equipment, which is able to wash and separate powder soil in sand and stones. It has a innovative seal structure, reliable transmission device, which is able to guarantee effect of cleaning and dehydration, and is a high-efficient sand washing equipment which can be used by matching sand making machine.

Our company offers high cleaning performance sand washing machine used to clean and separate the dust and impurity from the sand and improves the sand quality. Sand washing machine is a necessary equipment matched with sand making machine. Sand washing machine is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.

Features of Wheel Sand Washing Machine

1.It is simple in structure, stable in performance, and has high wash degree, less loss in sand washing process, especially while transmission device is seperated from water,and sand, failure rate is greatly lower than recent sand washing machin, and it has long life span.
2.It has reasonable structure, innovative seal structure, totally sealed oil bath gear, adjustable overflow weir plate, which can guarantee products with high efficiency, durability, good washing and dehydration effect, and fine grain products are stable;
3.Great capacity and low power consumption;
4.It can save water resource and has little pollution.

Technical Parameter of Wheel Sand Washing Machine

Mm to inch conversion: 25.4millimeters=1 inch

Model Wheel Size (mm) Max feed size (mm) Power (kW) Weight (t) Capacity (t/h) Overall dimension (mm)
XSD2610 Φ2600×1000 10 5.5 2.7 20-50 3255×1982×2690
XSD2816 Φ2800×1600 10 11 3 30-60 3540×3000×2880
XSD3016 Φ3000×1600 10 15 3.3 50-100 3845×3000×3080

Note: Any change of Wheel Sand Washing Machine technical data shall not be advised additionally.
