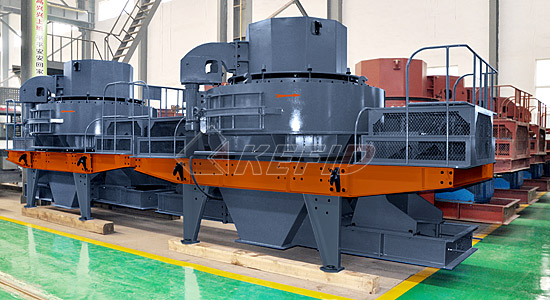

B series VSI crusher
B series VSI crusher(sand making machine) is the first choice for artificial sand making and stone sharping. Its high performance and low costs make it stand out from traditional sand making machine. B series VSI crusher is specially used to provide excellent aggregate material to highway, railway, building, city construction and hydropower industry.
VSI series sand making machine is specially used to provide excellent aggregate materail to highway, railway, building, city construction and hydropower industry.It has two kinds of crushing chamber, "rock-on-rock" and "rock-on-anvil". "rock-on-rock" is suitable for hard materials. The sand making ratio is above 40%. "rock-on-anvil" is suitable for medium-hard materials. The sand making ratio is above 50%. These two kinds of crushing methods can transform to each other so as to suit different materials.
Features of of B series VSI crusher
1.High output and wide utilization ratio: compared with traditonal machinery under same power, its production capacity increases 30% and structure is stability.
2. Low comsumption of easy-wear parts.
3. Excellent shaped final products.
4. Lubrication system ensures reliable operation.
5. Over-vibration device is equiped to protect the machine when vibration surpasses a stipulated figure.
Technical Parameter of B series VSI crusher
Mm to inch conversion: 25.4millimeters=1 inch
Model | B-7611 | B-8518 | B-9526 | B-1140 | |
Capacity (t/h) | Center and Ring feeding | 120-180 | 200-260 | 300-380 | 450-520 |
Center feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
Max Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
Hard material | <30 | <35 | <40 | <45 | |
Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
Power for double motor (kW) | 110-150 | 180-220 | 264-320 | 400-440 | |
Overall Dimension L×W×H (mm) |
3700×2150 ×2100 |
4140×2280 ×2425 |
4560×2447 ×2778 |
5000×2700 ×3300 |
|
Weight (t) | 7.8 | 10.3 | 16 | 25.6 | |
Power Source | 380v 50Hz | ||||
Vibrating Sensor | Inspect scope: 0.1-20mm/s adjusted continuously | ||||
Lubrication hydraulic pressure station | Power for double oil pump | 2×0.31kW | |||
Safety | To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter. | ||||
Power for oil box heater | 2 kW |
Note: Any change of B series VSI crusher technical data shall not be advised additionally.
