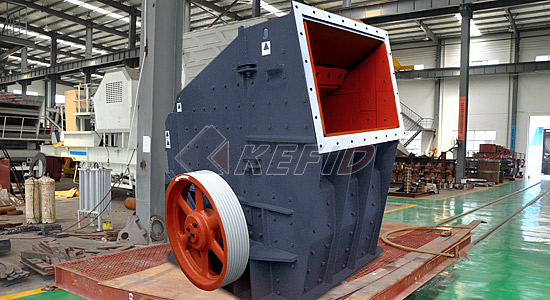

Primary Impact Crusher

Primary Impact Crusher

KEFID Impact Crushers have proven to be rugged, high performance and cost effective solutions in a variety of applications. Our customers will testify to both outstanding service and investment value. Our impact crushers are successfully crushing a wide range of materials such as limestone, dolomite, gravel, basalt, copper reverts, concrete and asphalt. Whether you need a portable, stationary impact crushing plant, we have the optimum, innovative solution for your specific needs.

It has been proved that this series of crushers not only effectively increase productivity and final product quality, but also greatly reduce the investment costs and operation costs. Unmatched excellent performance is shown in the secondary crushing, tertiary crushing and material recovery.

Features of Primary Impact Crusher

PFP impact crushers are generally used as a primary crushers for crushing quarry rock, which are designed for crushing low abrasive and medium hard materials.

The materials fed to the crusher trough its large feeding opening are crushed in two stages while impacted by the rotor's hammers to the adjustable primary and secondary impact plates.The materials will not pass to the secondary impact plate until being crushed and reduced to the size which the primary impact plate is adjusted to and will not pass to discharging chute until being crushed and reduced to the size which the secondary impact plate is adjusted to. By this adjustable impact plates the maximum size of output material can be controlled.

Technical Parameter of Primary Impact Crusher

P model Spec. Feeding
size (mm)
Max. feeding
size (mm)
Capacity (t/h) Power (kW) Weight (t)
PFP 1210 Ф1150X960 1100X1030 400 90-160 90-110 17.0
PFP 1214 Ф1150X1400 1100X1430 500 130-200 132-160 22.0
PFP 1315 Ф1300X1500 1200X1530 600 180-320 160-200 29.0
PFP 1318 Ф1300X1800 1200X1830 700 240-400 200-250 34.0

If there is change of the above specification, it subjects to the newest products' specifications.

Note: Any change of Primary Impact Crusher technical data shall not be advised additionally.
