Crawler Jaw Crusher

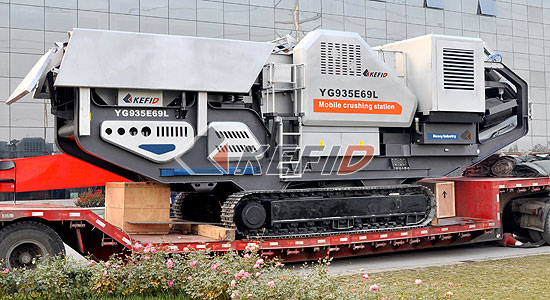

Crawler Mobile Jaw Crusher

The Crawler Jaw Crusher (also called tracked jaw crusher or pedrail jaw crusher)was designed by ourselves, utilizing the very latest European technology, including finite element techniques to minimize stress levels within the frame itself. Kefid has used all their experience gained over the last 23 years in manufacturing crushers, to produce their most modern and efficient crushers, which is targeted at the Recycling and Aggregate Contractor segment of the market.

The Crawler Jaw Crusher is mounted directly onto chassis on 4 pins,which is fully driven by hydraulic force and moves by chassis track. This has the added benefit of eliminating stress on the chassis. The crusher is welded in low stress areas, thus giving longer life.

Features of of Crawler Mobile Jaw Crusher

The feeder is equipped with a grizzly section located at the discharge end for removal of fines. This feature allows the passage of fine material direct to the discharge conveyors, so that it does not pass through the Jaw Crusher feed opening. This design makes possible a high production capacity by avoiding the accumulation of fine material (sometimes mud or clay) at the bottom end of the crushing chamber. The layer of fine material separated by the grizzly feeder is fed on to the main conveyor belt before the drop point from the jaw crusher and reduces the impact from the larger stones on the belt, beneath the Jaw Crusher. The fine material and the crushed product are transported on the main conveyor.

As an option, a separate natural fines belt conveyor can take out the natural fines.

Technical Parameter of Crawler Mobile Jaw Crusher

Vibrating Feeder

GZD-960X3800

GZD-960X3800

GZD-960X3800

Jaw Crusher

PE600X900

PE750X1060

PE500X750

Main Belt Width (mm)

800

1000

650

Main Belt Discharge Height (mm)

2700

2800

2700

Side Belt Width (mm)

500

650

500

Side Belt Discharge Height (mm)

2700

2900

2700

Power (KW)

150

220

150

Transportation Length (mm)

13000

14000

12500

Transportation Width (mm)

3050

3180

3050

Transporation Height (mm)

3500

4300

3400

Transporation Weight (T)

39

54

33

Note:
1. The above model is elementary mobile crushing plant;
2. We can produce the crushing & screening plant according to customers' requirement.

Get Price or Support of Crawler Mobile Jaw Crusher

Optional Equipment:

Vibrating Screen Screw Sand Washing Machine Wheel Sand Washing Machines Vibrating Feeder
