Crawler Cone Crusher

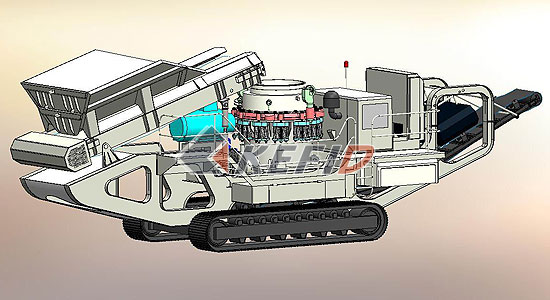

Crawler Mobile Cone Crusher

Kefid Crawler Cone Crusher (also called tracked cone crusher or pedrail cone crusher) is an excellent choice as secondary crusher in combination with a jaw or a primary gyratory crusher or in the third or fourth crushing stage. Thanks to their built-in versatility, this crusher will enable you to cope with most production requirements in a changing future. The tracked cone crusher meets exacting product quality demands. Aggregate specifications have been tightened up and this trend towards higher standards will continue. The tracked mobile cone crusher produces material of excellent shape and high quality. The shape of crushing cavity has a strong influence on the performance of the whole machine. Totally four specifications of cavity shapes are designed from coarse crushing to fine crushing of the machine. It may have six kinds of combination, meaning that it can be best applicable to special requirement of users.

Features of of Crawler Mobile Cone Crusher

The Kefid Crawler Cone Crusher is equipped with a hydro set system which provides both safety and setting adjustment functions, and incorporates a heavy-duty hydraulic cylinder which supports the main shaft and adjusts its position. The semi-automatic setting regulation system not only optimizes production, it also keeps track at liner wear. This makes it easy to plan liner changes and minimize interruptions in production, in addition to the high capacity, which makes it very easy to move and to install.

Technical Parameter of Crawler Mobile Cone Crusher

Cone Crusher CS75 CS160 HP220
Vibrating Feeder GLD1500/4 GLD1500/5 GLD1500/5
Up Hopper Volume (M3) 4 5 5
Feeding Height (mm) 2700 2900 2900
Main Belt Width (mm) 800 1000 1000
Main Belt Discharge Height (mm) 2700 2800 2800
Power (KW) 150KW 300KW 400KW
Transportation Length (mm) 12000 12500 12500
Transportation Width (mm) 3050 3050 3050
Transporation Height (mm) 3700 3900 3900
Transporation Weight (T) 38 45 50

1. The above model is elementary mobile crushing plant;
2. We can produce the crushing & screening plant according to customers' requirement.

Get Price or Support of Crawler Mobile Cone Crusher

Optional Equipment:

Vibrating Screen Screw Sand Washing Machine Wheel Sand Washing Machines Vibrating Feeder
