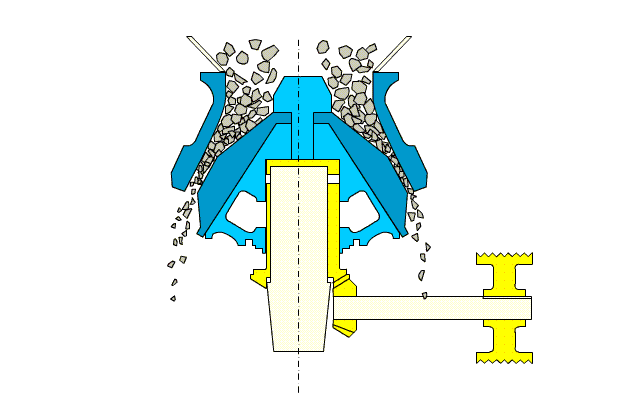

High-capacity, high-efficiency equipment is what every user pursues, but in addition to the equipment itself, the operation in production is also closely related to its efficiency. Taking cone crusher as an example, the following production suggestions can improve efficiency to a certain extent and obtain large production capacity.

First, adjust the size of the closed side discharge port to change the output

The output of the equipment can be achieved by adjusting the size of the closed side discharge opening. When the size of the closed side discharge port is larger, the output of the cone crusher is higher, and the quality of the finished product is worse. On the contrary, the smaller the size of the closed side discharge port, the smaller the output and the better the quality of the finished product. Therefore, manufacturers can adjust according to their actual needs.

Second, belt conveyoreven feeding

When feeding, the belt conveyor is required to input the material evenly, and the material must conform to the cone crusher Requirements for crushing materials, too much or too little feeding will affect the production efficiency of the equipment.

In addition, the operator needs to pay close attention to the discharge condition of the cone crusher discharge port and control the belt Conveyor speed to ensure normal feeding and discharging.

Third, it is best to pack the material

When installing the feeding device, pay attention to the speed of the ore entering the crusher and the corresponding drop relationship. Usually, because the speed of the conveyor is constant, only the drop height of the ore can be selected. While crowding the feeding ore, it is necessary to pay attention to the fact that the feeding can not be more or less, and the height of the ore pile in the feeding device should be controlled.

Fourth, reduce the ore powder entering the cylinder liner and prolong the service life of the sealing ring

Every time you replace the liner, check whether the moving cone dust seal is intact. Under normal circumstances, when the wear gap between the dust seal and the sliding ring is greater than 1.5mm, the dust seal should be replaced to prevent the mineral powder from entering the cylinder liner and causing damage to the main shaft and other components.

Five, keep the lubricating oil temperature balanced

Since the lubrication and heat dissipation of the main lubricating parts of the crusher, such as the main shaft, eccentric sleeve, eccentric shaft, frame bearing, main shaft adjusting piston, sliding bearing surface, gear rotation, etc. Very important.

Six, pay attention to the bolting of the dust-proof sealing slip ring

If the material accumulated on the beam is not cleaned in time, the bolt follower cone of the fixed slip ring will move relative to the accumulated material together, which will cause the tail of the bolt to wear. If there is a problem with the fixing state of the slip ring, careful technical inspection must be carried out to avoid the adverse consequences caused by the slip ring falling off.

Seven, regular inspection and maintenance

1) Regularly check the chiller, filter and oil pump of the equipment, and measure the oil temperature. Under normal circumstances, the return oil temperature is required not to exceed 60 degrees, and the temperature is too high for the equipment.

2) Regularly check the water seal and dust-proof drainage of the cone crusher. Once it is found that there is no water or a small amount of water, it should be stopped in time, otherwise it will seriously affect the equipment.

3) Every once in a while, the operator should check the oil pressure of the cone crusher locking cylinder. Especially in the case of serious wear of the lining plate, more attention should be paid to the lining plate fixing bolts on the adjustment ring. Once loose, the lining plate will become loose. For the newly replaced liner, it needs to be tightened again after 24 hours of operation.

4) During the operation of the equipment, check whether the individual shock-absorbing blocks at the bottom are suspended due to the subsidence of the foundation or the deformation of the steel frame, and the equipment swings greatly without any force.

5) Regularly check the wear of the cone crusher sleeve, straight sleeve, upper friction disc, bevel gear, lining plate, etc., and check the state of all bolts and their fasteners.
