1. Expert selection:

For the 700/800t/h limestone gravel production line, the workers of the sand and gravel project department gave: 1 set of ZSW1000 vibrating feeder, 1 set of PE1000×1500 jaw crusher, 2 sets of ZSW450 vibrating feeder, 4 sets of PF1520V counterattack Crusher, 4 sets of 4YK2460 circular vibrating screens, belt conveyors and other equipment configuration plans, the specific production line equipment configuration is as follows:

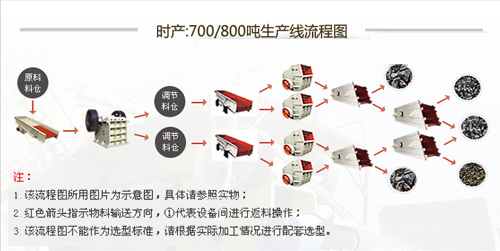

700/800 tons of limestone crushed stone production line flow chart

2. Production process:

The limestone stone is blasted from the mountain, and the stone less than 1020mm is sent to the vibrating feeder through the dump truck, and the vibrating feeder sends the stone evenly to the jaw crusher. The stones produced by jaw crushing are about 150mm-300mm. The vibrating feeder sends the material into the impact crusher for the second stage of crushing. The material is graded and screened through the circular vibrating screen. The material larger than the finished product is returned to the impact crusher for re-crushing. The finished product It is transported to the finished product area by a belt conveyor.
Note: When the feed material is less than or equal to 300mm, the material will directly enter the impact crusher for crushing, without the first stage of crushing.

3. Equipment list:

1. ZSW1000 vibrating feeder
The maximum feeding size of ZSW1000 vibrating feeder is 1500mm, the processing capacity is 800-1200t/h, and the power is 55kw. It can continuously and evenly feed the crushing machinery in the sand and gravel production line, and coarsely screen the materials. It is widely used. It is used in combined crushing and screening equipment in metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasive and other industries.

2. PE1200×1500 Jaw Crusher
The PE1200×1500 jaw crusher has a maximum feed size of 1020mm, a processing capacity of 20-800t/h, and a power of 5.5-200kw. Its gasket-type discharge port adjustment device is reliable and convenient, with a large adjustment range and increased The flexibility of the equipment, the lubrication system is safe and reliable, the parts are easy to replace, and the maintenance workload is small. The jaw crusher is widely used in mining, metallurgy, building materials, roads, railways, water conservancy and chemical industries.

3. ZSW450 vibrating feeder
The ZSW450 vibrating feeder has a maximum feeding size of 800mm, a processing capacity of 450t/h, and a power of 30kw. It can continuously and evenly feed the crushing machinery in the sand and gravel production line, and coarsely screen the materials. It is widely used in In metallurgy, coal mine, ore dressing, building materials, chemical industry, abrasive and other industries, combined crushing and screening equipment.

4. PF1520V Impact Crusher
PF1520V impact crusher has a maximum feeding size of 700mm, a processing capacity of 350-450t/h, and a power of 400-450kw. It is very suitable for crushing various soft and medium-hard ores for coarse, medium and fine crushing operations. It is widely used in metallurgy, mining, cement, chemical industry, refractory materials and ceramics and other industrial sectors, and it is widely used in highway construction, water conservancy engineering, construction gravel, machine-made sand processing and other fields.

5. 4YK2460 circular vibrating screen
The maximum feeding size of the 4YK2460 circular vibrating screen is 450mm, the processing capacity is 75-750t/h, the motor power is 30kw, and the 4YK2460 circular vibrating screen performs circular motion. It has reached the national standard and is at the advanced level at home and abroad, and is highly praised by users in various industries.

4. Customer case:

Capacity: 800 tons of gravel production line per hour
Client: Shandong Jinlong Cement Factory
Daily operation: 9-10 hours
Feed material: limestone, size 600-1000mm
Finished products: 20-30mm, 10-20mm, 5-10mm gravel, <=5mm sand, supply concrete mixing station, road construction
evaluate:
Mr. Chen, a partner of the large-scale stone co., ltd.: Because of the large production line, I compared several manufacturers before purchasing the equipment. After using the equipment, I am particularly satisfied with two aspects of the equipment: 1. The quality of the wear-resistant parts of the equipment is very good. Well, the service life is longer; 2. The technicians in the after-sales service department can not only solve the problems in time when the machine breaks down, but also have special personnel come to the site to give guidance on the use of the equipment, and assist in training our on-site management personnel some basic troubleshooting knowledge and maintenance skills.
