Cone crusher & Vibrating screen combination Portable crusher plant
Technical Parameter
| Model Technical data | Y3S54G83Y55K | Y3S54G83Y75K | Y3S86G14Y160K | Y3S26G14Y220K |
| Transportation Length (mm) (If there is a diesel generator) | 13500 | 14000 | 16700 | 16700 |
| 14500 | 16000 | |||
| Transportation Width (mm) | 2700 | 2700 | 2900 | 3300 |
| Transportation Height (mm) | 4000 | 4000 | 4400 | 4400 |
| Maximum Length (mm) | 14000 | 14600 | 19000 | 19000 |
| Maximum Width (mm) | 2800 | 2800 | 3150 | 3500 |
| Maximum Height (mm) | 6200 | 6200 | 6700 | 6700 |
| Weight (T) | 48 | 54 | 72 | 71 |
| Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial |
| Cone crusher | PYB900 | CS75 | CS160 | HPC-220 |
| Belt conveyor under Vibrating Screen | B650X7M | B650X7M | B800X8M | B1000X8M |
| Belt conveyor above Vibrating Screen | B650X15M | B650X15M | B800X15M | B1000X16M |
| V shape belt conveyor | B650X14M | B650X14M | B800X14M | B1000X15M |
| Belt conveyor for re-crushing material | B500X3.5M | B500X4M | B650X3M | B650X3M |
| Vibrating feeder | GZD-850X3000 | GZD-850X3000 | GZD-1100X4200 | GZD-1100X4200 |
| Vibrating Screen | 3YZS1548 | 3YZS1548 | 3YZS1860 | 3YZS2160 |
Note: Any change of Perfect Combination Mobile Crushing Plant technical data shall not be advised additionally.

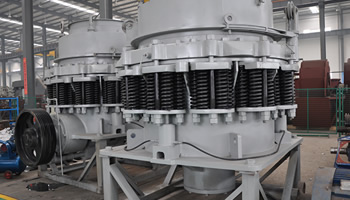

Cone Crusher
Symons cone crusher,Hydraulic Cone Crusher and Spring Cone Crusher are high efficiency crusher to provide excellent aggregate to highway, railway, building ,bridge, water resource and hydropower industry.
Symons cone crusher (CS series cone crusher)is a kind of high efficiency spring cone crusher, which integrate optimization of cavity-type and reasonable stoke and advanced technology, and follows the conception of laminated crushing principle of more crushing and less grinding.
Hydraulic cone crusher is designed to meet the client's request of the high outputs, excellence product fineness and economical running costs. It introduced the germany technology, not only improves the production capacity and crushing efficiency, but also widens applying area, hardness range of materials from limestone to basalt. Hydraulic cone crusher is ideal crusher for large stone crushing factory and mining industry.
Compared with jaw crusher, spring cone crusher has the advantage of low operation costs, high productive, easy adjustment and stable structure. It can be used for secondary and fine crushing of hard and medium hard mineral stone, such as iron ore, copper ore, quartz, granite, basalt and dolerite,etc.
spring cone crusher:
| Type | Max. input(mm) | Adjusting range of output (mm) | Capacity (t/h) | Motor power (kW) | weight (t) | Overall dimensions (L×W×H)(mm) | |
| PYB | 600 | 65 | 12-25 | 12-25 | 30 | 5 | 2800×1300×1700 |
| PYD | 35 | 3-15 | 5-23 | 5.5 | |||
| PYB | 900 | 115 | 15-50 | 50-90 | 55 | 10.2 | 3050×1640×2350 |
| PYZ | 60 | 5-20 | 20-65 | 10.2 | |||
| PYD | 40 | 3-13 | 15-50 | 10.3 | |||
| PYB | 1200 | 145 | 20-50 | 110-200 | 110 | 24.7 | 4152×2300×2980 |
| PYZ | 100 | 8-26 | 50-150 | 25 | |||
| PYD | 50 | 3-15 | 18-105 | 25.6 | |||
| PYB | 1750 | 215 | 25-60 | 280-480 | 160 | 50.3 | 4870×3800×4192 |
| PYZ | 185 | 10-30 | 115-320 | 50.3 | |||
| PYD | 85 | 5-15 | 75-230 | 50.4 | |||
| PYB | 2200 | 300 | 30-60 | 590-1000 | 260-280 | 80 | 7705×3430×4852 |
| PYZ | 230 | 10-30 | 200-580 | 80 | |||
| PYD | 100 | 5-15 | 120-340 | 81.4 | |||
Vibrating Screen
The Vibrating Screen (YZS vibrating screens,Circular Vibrating Screen,vibrating Sieve) is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad.
It is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.Our company provides a great capability in the design and manufacture of vibrating screens for a wide range of duties. Vibrating screen is usually used to separate materials into various sizes for further processing. Vibrating screen also used as a supporting machine in stone crushing plant, or for end use, that depends on client's needing.
Technical Parameter of the vibrating Sieve(vibrating screen) :
| Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-586 | 30 | 750-950 | 5-9 |
| 2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 700-900 | 5-9 |
| 3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 700-900 | 5-9 |
| 3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
| 4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
