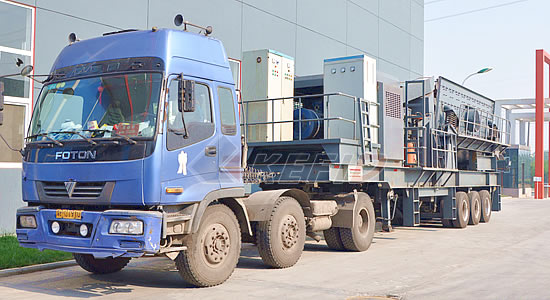

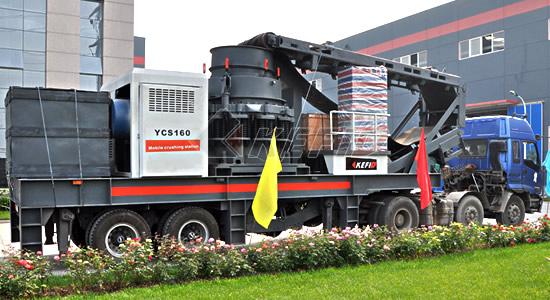

Mobile Cone Crusher Plant
YSY series Mobile Cone Crusher Plant is another kind of mobile crushing unit, mainly to satisfy different requirement of final products. Cone crusher replaces impact crusher to produce much harder and fine stone or sand products. According to actual needs, cone crusher can be adjusted to different crushing chamber. It expands the using area of YSY series medium-coarse crushing cone crusher mobile crushing station. Inquire now !
YSY series Mobile Cone Crusher mainly consists of high efficiency cone crusher, high-performance vibrating screen, belt conveyor, and motor and control panel and so on. The whole unit is installed integrated, operating coordinately. Mobile Cone Crusher Crushing Plant fully reflects the advantages of convenience and flexibility.is designed by different crushing principle and crushing effects of cone crusher and impact crusher.There is large difference between input requirement and the output size. At the side of easy operating, it has the common advantage of YGE series mobile crushing station and YSF series mobile crushing station.
1. The integrating installation of the equipments makes strong coordination. Reasonable and compact spatial distribution saves much time for site construction. It improves the flexibility and avoids lots of infrastructure construction. In this method, invest cost is saved largely.
2. Bottom head of the truck-mounted coarse Portable crusher station is high. Width of the truck is smaller than the operating semi trailer. The turning radius is small and it is easy for road driving and more convenient for driving in the hash hilly environment. It saves much time from start working.
3. Cone Portable crusher acts the function of fine Portable crusher; also it can produce fine grained final products of stones and sands. It will save the cost of materials transporting. At the same time, the lengthened unit can directly send the crushed 120products to the bin of the truck and the transporting cost is reduced.
4. Cone Portable crusher adopts static pressure principle. The shake will be softer after the second time obstruct. It is easy for installing.
5. The crushing efficiency will be high of bed of materials of cone crusher. It works stable and can save much time to a large extent.
6. The single unit can work separately; also it can be equipped with other unit flexibly to work together. The sideways hopper produces flexible equipments combination for transporting the materials. The diesel motor in the line of integration unit can provide electricity not only to the line itself but also to the equipments combination of the whole system.
7. The technical is mature. It is easy for maintenance. A clear division of labor of the equipments is convenient for maintenance.
|Model Technical data||Y3S154Y55||Y3S184Y75||Y3S186Y160||Y3S216Y220|
|Transportation Length (mm)||12000||12000||13500||13500|
|Transportation Width (mm)||2550||2800||2800||3000|
|Transportation Height (mm)||3900||3900||4200||4200|
|Maximum Length (mm)||13700||13700||15200||15200|
|Maximum Width (mm)||2800||3150||3150||3500|
|Maximum Height (mm)||5700||5700||6400||6400|
|The maximum Feeding size (mm)||115||102||C-150 F-76||C-225 F-86|
|Discharge opening size (mm)||15-50||9-38||C13 F6>||C13 F6|
Note: Any change of Mobile Cone Crusher Crushing Plant technical data shall not be advised additionally.
