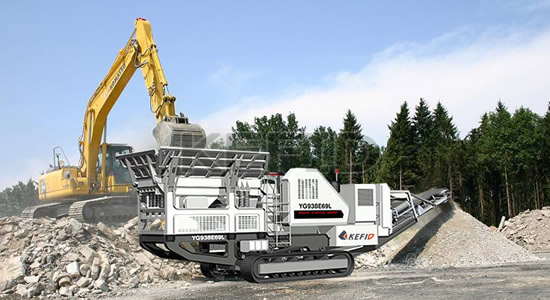

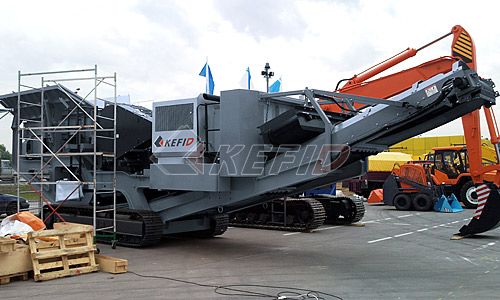

Crawler Type Mobile Crusher Plant
Crawler Type Mobile Crusher Plant is of high cost performance, reliable & beatiful structure or Portable crusher. It is designed and researched by our experienced engineers according to the customers' requirement. Its technology is as advanced as the internationl level. Crawler type mobile crushing & screening plant is widely used in road & bridge construction, metallurgy and other fileds to crusher and screen.
Inquire now !Gallery
Perfect performance of Cummins diesel engine.
Crawler Type Mobile Crushing & Screening Portable crusher is low consumption, low noise,reliable performace. And we can equip a military cryogenic preheat starting device, so that the crushing plant can be started to work even the temperature is bleow 25 degrees centigrade.
The chassis adopts crawler rigid ship form structure.
Crawler Type Mobile Crushing & Screening Portable crusher is of high intensity, easy to be transported on the different landform like mountain and marsh.
Controlling system adopts imported and advanced servo system.
Crawler Type Mobile Crushing & Screening Plant is easy and exact to be controlled to stepless crawl.
The crushing & screening plant adopts our company's advanced product.
Its structure is compact. The screen is installed in 20 degree angle, so the screening is highly efficient.
Mobile Jaw Crusher Crushing Plant:
| Vibrating Feeder | GZD-960X3800 | GZD-960X3800 | GZD-960X3800 |
| Jaw Crusher | PE600X900 | PE750X1060 | PE500X750 |
| Main Belt Width (mm) | 800 | 1000 | 650 |
| Main Belt Discharge Height (mm) | 2700 | 2800 | 2700 |
| Side Belt Width (mm) | 500 | 650 | 500 |
| Side Belt Discharge Height (mm) | 2700 | 2900 | 2700 |
| Power (KW) | 150 | 220 | 150 |
| Transportation Length (mm) | 13000 | 14000 | 12500 |
| Transportation Width (mm) | 3050 | 3180 | 3050 |
| Transporation Height (mm) | 3500 | 4300 | 3400 |
| Transporation Weight (T) | 39 | 54 | 33 |
Mobile Impact Crusher Crushing Plant:
| Vibrating Feeder | GZD-960X3800 | GZD-960X3800 | GZD-960X3800 |
| Impact Crusher | PF1010 | PF1210 | PF1214 |
| Main Belt Width (mm) | 800 | 800 | 1000 |
| Main Belt Discharge Height (mm) | 2700 | 2700 | 2700 |
| Side Belt Width (mm) | 500 | 500 | 500 |
| Side Belt Discharge Height (mm) | 2700 | 2700 | 2700 |
| Power (KW) | 150KW | 200 | 300 |
| Transportation Length (mm) | 12000 | 13000 | 13000 |
| Transportation Width (mm) | 3050 | 3050 | 3050 |
| Transporation Height (mm) | 3500 | 3800 | 3800 |
| Transporation Weight (T) | 36 | 42 | 48 |
Mobile Cone Crusher Crushing Plant:
| Cone Crusher | CS75 | CS160 | HP220 |
| Vibrating Feeder | GLD1500/4 | GLD1500/5 | GLD1500/5 |
| Up Hopper Volume (M3) | 4 | 5 | 5 |
| Feeding Height (mm) | 2700 | 2900 | 2900 |
| Main Belt Width (mm) | 800 | 1000 | 1000 |
| Main Belt Discharge Height (mm) | 2700 | 2800 | 2800 |
| Power (KW) | 150KW | 300KW | 400KW |
| Transportation Length (mm) | 12000 | 12500 | 12500 |
| Transportation Width (mm) | 3050 | 3050 | 3050 |
| Transporation Height (mm) | 3700 | 3900 | 3900 |
| Transporation Weight (T) | 38 | 45 | 50 |
Mobile Vibrating Screen Crushing Plant:
| Vibrating Screen | 2ZS1848 | 3YZS1860 | 3YZS2160 |
| Closed hopper volume (M3) | 5 | 6 | 8 |
| Closed hopper Height (mm) | 4300 | 5000 | 5000 |
| Feeding Belt | B800X7.2 | B1000X8.5 | B1000X8.5 |
| Screen Under Belt | B800X7 | B1000X8 | B1000X8 |
| Screen Under Belt Discharge Height (mm) | 3500 | 3500 | 3500 |
| Side Blet | B500X5 | B650X5 | B650X5 |
| Side Blet Discharge Height (mm) | 3500 | 3500 | 3500 |
| Front Belt | B650X7 | B800X8 | B800X8 |
| Front Belt Discharge Height (mm) | 2800 | 3000 | 3000 |
| Power (KW) | 120 | 150 | 180 |
| Transportation Length (mm) | 12000 | 13500 | 1400 |
| Transportation Width (mm) | 3050 | 3200 | 3400 |
| Transporation Height (mm) | 3500 | 4100 | 4100 |
| Transporation Weight (T) | 30 | 36 | 42 |
Note: Any change of Crawler Type Mobile Crushing And Screening Portable crusher technical data shall not be advised additionally.
