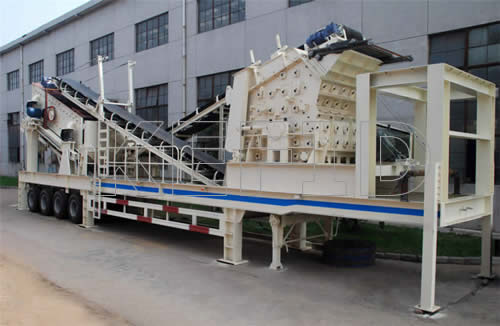

Mobile Impact Crusher Plant
YSF series mobile impact crusher plant is mainly used in the industry of metallurgy, chemical, building materials, water power station which needs to change working site often, especially for process stones used in high way, railway and so on. Many kinds of designs are for clients' choices according to different materials, scale and requirement of the final products. Truck-mounted mobile impact crusher especially is suitable for builders rubbish crushing in a small working site.
Gallery

Flexibility:
Bottom head of the truck-mounted impact Portable crusher mobile crushing station is high. Width of the truck is smaller than the operating semi trailer. The turning radius is small and it is easy for road driving and more convenient for driving in the hash hilly environment. It saves much time from start working.
It is more convenient for the vehicle to enter the exact processing area. It provides for the whole Portable crusher flow with more flexible space and reasonable layout.
Cost reduced:
The Portable crusher station can drive to the selected working site directly and no need transport. Also the lengthened unit can directly send the materials being crushed to the conveyor belt and the transport cost is reduced.
More flexible technical plan can be provided to satisfy customers' various requirements on mobile crushing and mobile screening according to the material type and products request. The working process and transportation of final material will be more effective and cost can be reduced at most.
Immediacy and efficiency:
Integrated truck mounted impact Portable crusher mobile crushing station includes primary crushing station and secondary crushing and sieving station. Each crushing station is separate working unit and can undertake different duties. Belt conveyor takes charge of transporting materials between conveyors, and sends materials to stacking.
Strong adjustability and flexible combination:
Truck-mounted Portable crusher station provides to customers with simple, low-cost equipments combination with special characteristic. As to coarse crushing, fine crushing and screening system, the single unit can work separately; also it can be equipped with other unit flexibly to work together. The sideways hopper produces flexible equipments combination for transporting the materials. The diesel motor in the line of integration unit can provide electricity not only to the line itself but also to the equipments combination of the whole system.
Stable performance and easy maintenance:
The truck-mounted mobile crushing station equipped with PE series, PF series, HP series,and PV series crushers. It has the features of high efficiency, multifunction, good quality of crushers, reasonable structure, and brilliant crushing capability. It can furthest satisfy the crushing and screening requirement of coarse, medium-coarse, fine materials. It sets good reputation for all the customers.
Model | Y3S154F1010 | Y3S184F1210 | Y3S186F1214 | Y3S216F1315 |
Transportation Length (mm) | 11000 | 11600 | 12800 | 13500 |
Transportation Width (mm) | 2450 | 2800 | 2800 | 3000 |
Transportation Height (mm) | 3900 | 4400 | 4400 | 4500 |
Maximum Length (mm) | 12700 | 13500 | 15500 | 16200 |
Maximum width (mm) | 2800 | 3150 | 3150 | 3500 |
Maximum Height (mm) | 5700 | 6000 | 6400 | 6700 |
Weight (T) | 34 | 40 | 45 | 56 |
Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial |
Impact crusher | PF-1010 | PF-1210 | PF-1214 | PF-1315 |
Feed opening size | 400*1080 | 400*1080 | 400*1430 | 860*1520 |
Maximum Feeding size (mm) | 350 | 350 | 350 | 500 |
Capacity (T/h) | 50-250 | 70-300 | 90-400 | 120-450 |
Belt conveyor | B650X7M | B650X7M | B800X8M | B800X8M |
Vibrating Screen | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |
Note: Any change of Mobile Impact Crusher Crushing Plant technical data shall not be advised additionally.
