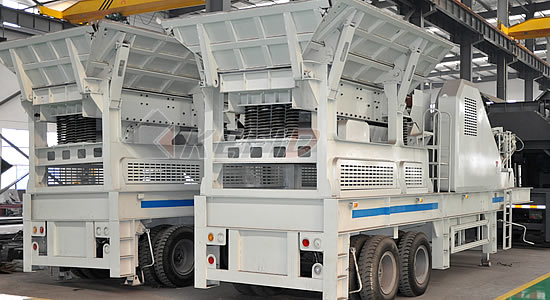

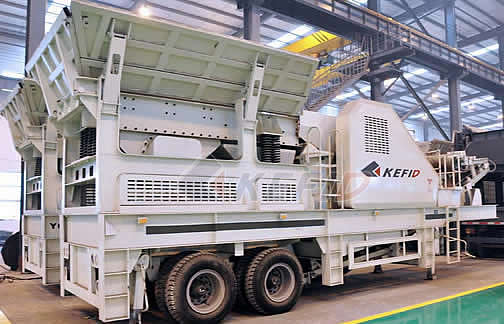

Complete Combination Mobile Crusher Plant

Complete Combination Mobile Crusher Plant

Complete Combination Mobile Crushing Plant Characters:

1. High cost performance.
2. It is suitable for most of small scale project.
3. Feeding, primary crushing, secondary crushing & screening in the same trailer.
4. Belt conveyor self-loaded.
5. The pioneer of independent crushing & screening.  Inquire now !
Technical Parameter of Complete Combination Mobile Crusher
Model Technical data Y3S23G91 E46E51B Y3S23G83 E46Y55B Y3S54G83 E57Y75B Y3S84G83 F00V71B Y3S48G93 E69Y55K
Transportation Length (mm) 13000 14000 15500 16800 15500
Transportation Width (mm) 2700 2700 2800 2800 2800
Transportation Height (mm) 4200 4200 4200 4200 4200
Maximum Length (mm) 14500 16000 17000 19400 18000
Maximum Width (mm) 2800 2800 2900 3150 3150
Maximum Height (mm) 5400 5400 5600 6000 6000
Weight (T) 41 48 58 60 63
Tire Configuration Dualaxial Dualaxial Dualaxial Triaxial Triaxial
Primary Crusher PE400X600 PE400X600 PE500X750 PF-1010 PE600X900
Secondary crusher PEX250X1000 PYB900 CS75 VSI-7611 PYB900
Belt conveyor under Vibrating Screen B500X6M B500X6M B650X7M B800X7M B800X7M
Belt conveyor above Vibrating Screen B500X13M B500X14M B650X14M B650X18M B800X15M
Main belt conveyor B500X8M B500X8M B650X9M B650X10M B800X14M
Belt conveyor for re-crushing material         B650X10M
Vibrating Feeder GZD-950X150 GZD-850X3000 GZD-850X3000 GZD-960X3800 GZD-960X3800
Vibrating Screen 3YZS1237 3YZS1237 3YZS1548 3YZS1848 3YZS1848

Note: Any change of Complete Combination Mobile Crushing Plant technical data shall not be advised additionally.
