Mobile combination plant with vibrating feeder, impact crusher & vibrating screen
Combination portable crusher with vibrating feeder, impact crusher & vibrating screen:
Technical Parameter
| Model Technical data | Y3S54G83F00 | Y3S84G83F20 | Y3S86G93F24 | Y3S26G14F35 |
| Transportation Length (mm) (If there is a diesel generator) | 17000 | 17600 | 16800 | 17000 |
| 17000 | 17600 | 17800 | 18500 | |
| Transportation Width (mm) | 2700 | 2900 | 2900 | 3300 |
| Transportation Height (mm) | 3900 | 4400 | 4400 | 4500 |
| Maximum Length (mm) | 18500 | 19200 | 20800 | 21500 |
| Maximum Width (mm) | 2800 | 3150 | 3150 | 3500 |
| Maximum Height (mm) | 5600 | 6000 | 6600 | 6600 |
| Weight (T) | 49 | 56 | 66 | 78 |
| Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial |
| Impact crusher | PF-1010 | PF-1210 | PF-1214 | PF-1315 |
| Belt conveyor under Vibrating Screen | B650X7M | B650X7M | B800X8M | B1000X8M |
| Belt conveyor above Vibrating Screen | B500X13M | B650X14M | B800X15M | B1000X16M |
| V shape belt conveyor | B800X14M | B1000X15M | ||
| Belt conveyor for re-crushing material | B500X7M | B500X8M | B800X8.5M | B1000X8.5M |
| Vibrating Feeder | GZD-850X3000 | GZD-850X3000 | GZD-960X3800 | GZD-1100X4200 |
| Vibrating Screen | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |

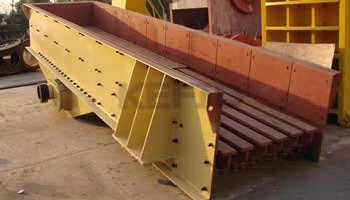

Vibrating Feeder
Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants. In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly.
We can supply wide ranging vibrating feeders, capacities ranging from120 tonne/hr to 600 tonne/hr. Vibrating feeder is used for transferring bulk materials from hoppers or driers, grinders, crushers, millers or screens in chemical, mining, foundry, quarrying and iron and steel industries.
Technical Parameter of the Vibrating Feeder:
Mm to inch conversion: 25.4millimeters=1 inch
| Model | Feed chute size (mm) | Max. feeding size (mm) | Handling capacity (t/h) | Power (kW) | Overall dimension (mm) | Weight (including motor) (kgs) |
| GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3880×2240×1880 | 3980 |
| GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4300×2450×2010 | 4170 |
| GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4980×2450×2030 | 4520 |
| GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 4980×2705×2050 | 5200 |

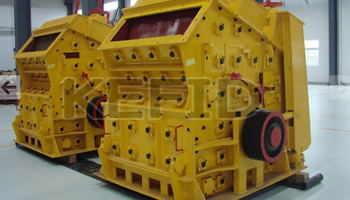

Impact Crusher
PF series Impact Crushers are most advanced size reduction crushing equipments for stone, ore, limestone, rock, and refractories. The final products of impact crusher are with good cubic shapes is suitable for railway, road construction and other industries. Our impact crusher equipments are accurate, reliable time tested performance. We manufacture and supply portable, stationary impact crushing plants and crusher equipments.
Technical Parameter of PF series Impact Crusher:
| Model | Size of rotor (mm) | Feed opening (mm) | Max. feed size (mm) | Capacity (t/h) | Power of Motor (kW) | Weight (t) |
| PF1007 | Φ1000×700 | 400×730 | 300 | 15-30 | 37 | 6 |
| PF1010 | Φ1000×1050 | 400×1080 | 350 | 50-80 | 75 | 12.5 |
| PF1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 16.5 |
| PF1214 | Φ1250×1400 | 400×1430 | 350 | 90-180 | 132 | 19 |
| PF1315 | Φ1320×1500 | 860×1520 | 500 | 120-250 | 200 | 24 |
| PF1320 | Φ1320×2000 | 860×2030 | 500 | 160-350 | 260 | 27 |
Vibrating Screen
The Vibrating Screen (YZS vibrating screens,Circular Vibrating Screen,vibrating Sieve) is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad.
It is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.Our company provides a great capability in the design and manufacture of vibrating screens for a wide range of duties. Vibrating screen is usually used to separate materials into various sizes for further processing. Vibrating screen also used as a supporting machine in stone crushing plant, or for end use, that depends on client's needing.
Technical Parameter of the vibrating Sieve(vibrating screen) :
| Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-586 | 30 | 750-950 | 5-9 |
| 2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 700-900 | 5-9 |
| 3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 700-900 | 5-9 |
| 3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
| 4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
