Jaw crusher & Vibrating screen combination mobile crushing plant:
Technical Parameter
| ModelTechnical data | Y3S23G91E46B | Y3S54G83E57B | Y3S86G93E69K | Y3S26G14E71K |
| Transportation Length (mm) (If there is a diesel generator) | 12500 | 16400 | 16800 | 16800 |
| 12500 | 17000 | 17300 | 18600 | |
| Transportation Width (mm) | 2700 | 2700 | 2900 | 3300 |
| Transportation Height (mm) | 3900 | 3900 | 4200 | 4500 |
| Maximum Length (mm) | 14000 | 18400 | 19000 | 19000 |
| Maximum Width (mm) | 2800 | 2900 | 3150 | 3500 |
| Maximum Height (mm) | 5600 | 6000 | 6400 | 6400 |
| Weight (T) | 34 | 46 | 62．5 | 78 |
| Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial |
| Jaw Crusher | PE400X600 | PE500X750 | PE600X900 | PE750X1060 |
| Belt conveyor under Vibrating Screen | B500X6M | B650X7M | B800X8M | B800X8M |
| Belt conveyor above Vibrating Screen | B500X10.5M | B650X13M | B800X15M | B1000X16M |
| V shape belt conveyor | B800X14M | B1000X15M | ||
| Belt conveyor for re-crushing material | B500X6M | B650X8M | B650X6M | B650X7M |
| Vibrating Feeder | GZD-950X150 | GZD-850X3000 | GZD-960X3800 | GZD-1100X4200 |
| Vibrating Screen | 3YZS1237 | 3YZS1548 | 3YZS1860 | 3YZS2160 |

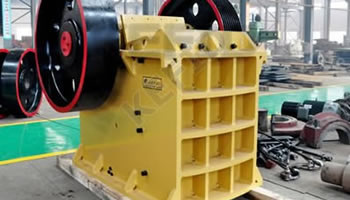

Jaw crusher
Jaw crusher is composed of frame, eccentric draft, large belt wheel, flying wheel, mobile jaw, side plate, toggle plate, back seat of toggle plate, gap ajustment screw, reset spring, fixed jaw and so on. Among them, toggle plate plays a role of assurance.
Jaw crusher of this series is of bend and press type. Moter will drive the belt and the belt wheel to force the mobile jaw to move up and down through eccentric draft, while the mobile jaw is lifting, angle between the toggle and the mobile jaw will become bigger, and the mobile jaw will move towards the fixed jaw; the jaw gears will throw materials to the crushing wall powerfully, and stones will be crushed to little pieces; while it goes down, the angle will become smaller, while pulled by the draw bar and spring, the mobile jaw will leave the fixed jaw and crushed materials will be discharged frome the outlet. While the motor is rotating continuously, the mobile jaw will carry out periodical press and discharging and implement mass production.
Technical Parameter of Jaw Crusher:
Mm to inch conversion: 25.4millimeters=1 inch
| Model | Max. Feeding Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
| PE150×250 | 125 | 10-40 | 1-3 | 5.5 | 896×745×935 | 0.8 |
| PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275×1240 | 2.8 |
| PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732×1653 | 6.5 |
| PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921×2000 | 10.3 |
| PE600×900 | 480 | 65-160 | 60-130 | 75 | 2290×2206×2370 | 16.5 |
| PE750×1060 | 630 | 80-140 | 80-180 | 110 | 2620×2302×3110 | 29 |
| PE900×1200 | 750 | 95-165 | 140-260 | 110 | 3789×2826×3025 | 54.5 |
| PE1000×1200 | 850 | 195-265 | 315-550 | 110 | 3335×3182×3025 | 57 |
| PE1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 4200×3750×3820 | 100.9 |
| PEX250×750 | 210 | 25-60 | 10-40 | 22 | 1667×1545×1020 | 5 |
| PEX250×1000 | 210 | 25-60 | 15-50 | 30 | 1550×1964×1380 | 6.5 |
| PEX250×1200 | 210 | 25-60 | 20-60 | 37 | 1560×2104×1415 | 7.7 |
Note: Any change of Jaw Crusher technical data shall not be advised additionally.

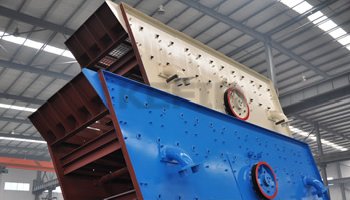

Vibrating Screen
The circular vibrating screen is a new vibrating screen vibrating in a circle, with multiple layers and high efficiency. This screen adopts barrel type eccentric vibration generator, and eccentric block for swing adjustment. It has a long vibrating line, various screen specifications, reliable structure, powerful vibraing power and specially designed for quarries stone screening, and is widely used for products grading for ore, construction materials, traffic, energy, chemistry and other industries, which is an ideal equipment for crushing and sceening assembly. While small meshed screen is installed, wet and sticky materials can be sceened only by adding water to spray.
Technical Parameter of the vibrating Sieve(vibrating screen) :
| Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-586 | 30 | 750-950 | 5-9 |
| 2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 700-900 | 5-9 |
| 3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 700-900 | 5-9 |
| 3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
| 4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
