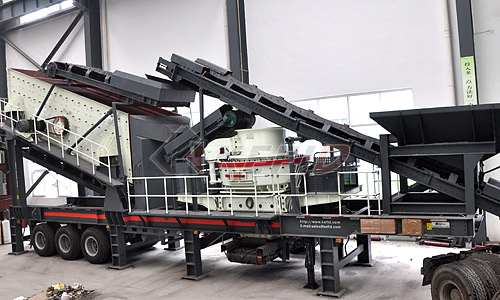

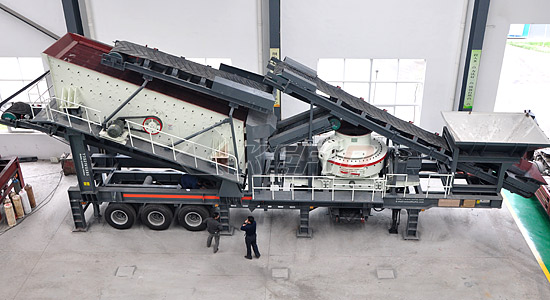

Mobile VSI Crusher Plant
Mobile Vertical Shaft Impact Crusher Plant is the first choice for artificial sand making and stone sharping.
Characters Of Mobile Vertical Shaft Impact Crusher:
High capacity, suitable for fine crushing, shape adjusting easily,high performance, flexible, integral crushing & screening and belt conveyor self-loaded.
Inquire now !
Gallery
1. High output and wide utilization ratio: compared with traditonal machinery under same power, its production capacity increases 30% and structure is stability.
2. Low comsumption of easy-wear parts.
3. Excellent shaped final products.
4. Lubrication system ensures reliable operation.
5. Over-vibration device is equiped to protect the machine when vibration surpasses a stipulated figure.
6. The adjustable feed hopper guarantees the best quantity of material.
7. Environment friendly.
| Model | Y3S154F1010 | Y3S184F1210 | Y3S186F1214 | Y3S216F1315 |
| Transportation Length (mm) | 11000 | 11600 | 12800 | 13500 |
| Transportation Width (mm) | 2450 | 2800 | 2800 | 3000 |
| Transportation Height (mm) | 3900 | 4400 | 4400 | 4500 |
| Maximum Length (mm) | 12700 | 13500 | 15500 | 16200 |
| Maximum width (mm) | 2800 | 3150 | 3150 | 3500 |
| Maximum Height (mm) | 5700 | 6000 | 6400 | 6700 |
| Weight (T) | 34 | 40 | 45 | 56 |
| Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial |
| Impact crusher | PF-1010 | PF-1210 | PF-1214 | PF-1315 |
| Feed opening size | 400*1080 | 400*1080 | 400*1430 | 860*1520 |
| Maximum Feeding size (mm) | 350 | 350 | 350 | 500 |
| Capacity (T/h) | 50-250 | 70-300 | 90-400 | 120-450 |
| Belt conveyor | B650X7M | B650X7M | B800X8M | B800X8M |
| Vibrating Screen | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |
Note: Any change of Mobile Impact Crusher Crushing Plant technical data shall not be advised additionally.
